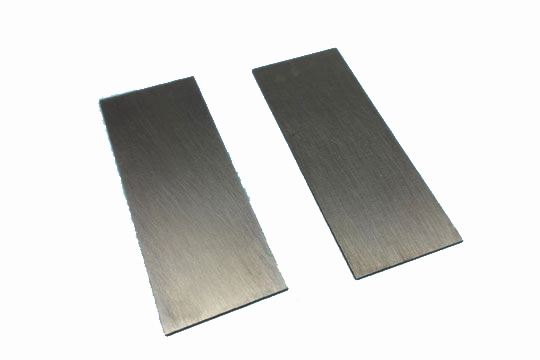

Molybdenum Plate
provides our customers with the high-quality molybdenum plate. We offer standard plate thicknesses that can be cut to size or rolled to customer-specified thickness, length, surface finish, and other material properties. As with all of our materials, our sheet begins as metal powder, pressed into ingots, sintered, and then rolled. The process enables us to tailor the product to meet specific customer material and performance requirements to ensure optimal performance in your application.
Standard: ASTM B386
Material: >99.95%
Density: >10.20g/cc
Molybdenum Plate Applications
– Suitable for producing ion implantation parts.
– Producing for heating elements and electric vacuum components.
– Applied in the production of the cover board of sapphire crystal-growing furnace.
– Heating belt for connecting parts of vacuum furnace.
– Sputtering target material and tungsten boat for plasma coating.
Molybdenum Plate Specifications
| Surface | Thickness (mm) | Tolerance (mm) | Width (mm) | Tolerance (mm) | Length (mm) | Tolerance (mm) | Roughness (um) |
|---|---|---|---|---|---|---|---|
| Rolling | 2.0-3.0 | ±0.05~±0.5 | 10-300 | ±0.2~±0.5 | 10~2000 | ±0.2~±0.5 | / |
| Turning | 10-40 | ±0.05~±0.1 | 10-300 | ±0.1~±0.5 | 10~500 | ±0.1~±0.5 | Ra≤3.2 |
| Ground | 10-40 | ±0.05~±0.1 | 10-800 | ±0.05~±0.2 | 10~1000 | ±0.05~±0.2 | Ra≤0.8 |
| Cold rolling | 0.1-2.0 | ±0.05~±0.1 | 10-300 | ±0.05~±0.2 | 10~300 | ±0.05~±0.2 | Ra≤1.6 |
Chemical Composition of Molybdenum Plate
| Elements | Fe | Ni | Al | Si | Ca | Mg | P | C | O | N |
|---|---|---|---|---|---|---|---|---|---|---|
| Content (%) | 0.005 | 0.002 | 0.002 | 0.002 | 0.002 | 0.001 | 0.001 | 0.006 | 0.006 | 0.003 |
