Nitinol Alloys
Nickel Titanium (also known as Nitinol or NiTi) is in the unique class of shape memory alloys. A thermoelastic martensitic phase transformation in the material is responsible for its extraordinary properties. Nitinol alloys are typically made of 55%-56% Nickel and 44%-45% Titanium.
Small changes in composition can significantly impact the properties of the material. There are two primary categories of Nitinol. The first, known as “Super-elastic”, is characterized by extraordinary recoverable strains and kink resistance. The second category, “Shape Memory” alloys, is valued for the Nitinol’s capacity to recover a pre-set shape when heated above its transformation temperature.

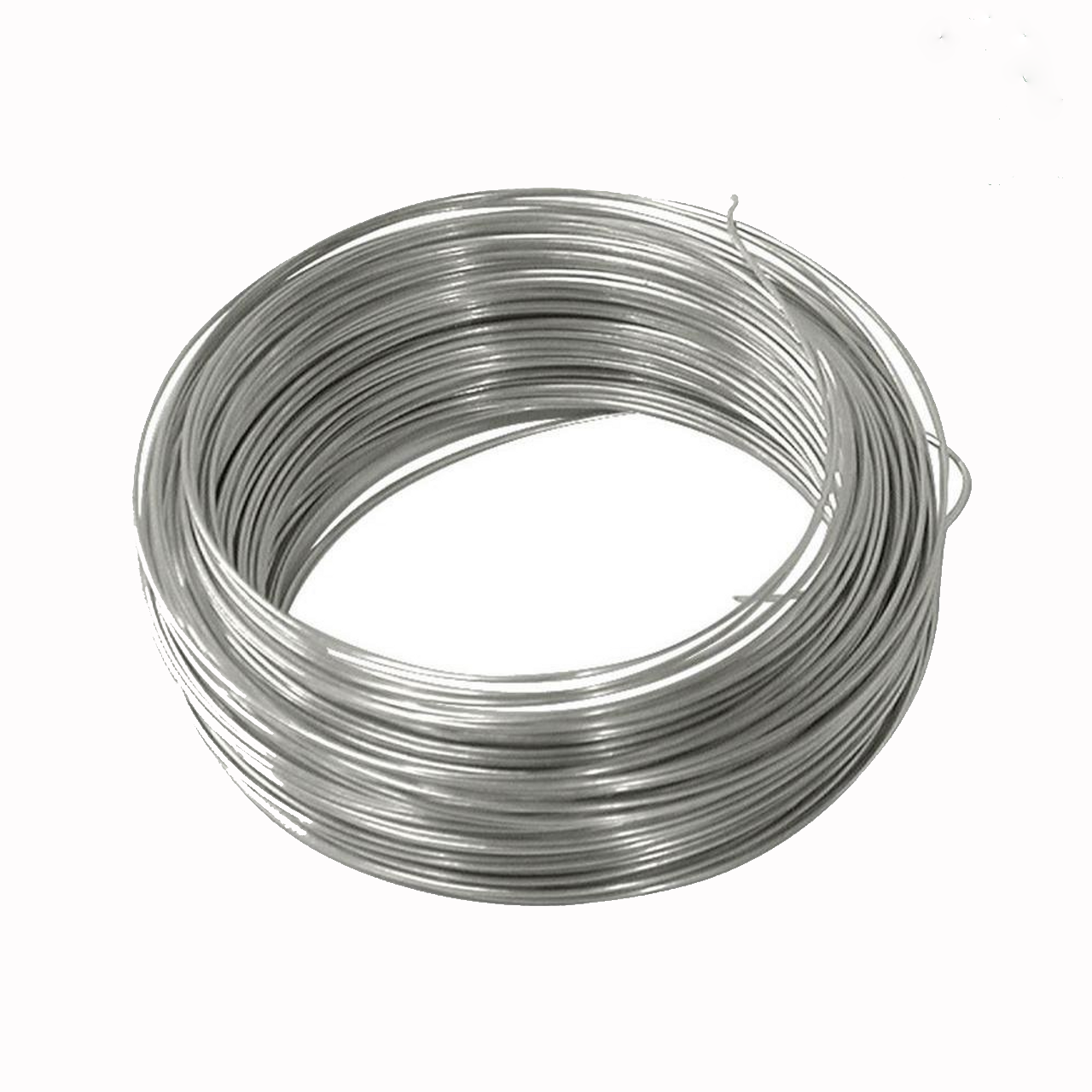

Nitinol Wires & Rods
| Dimension |
Diameter ≥0.05 mm |
| Category |
Super-elastic/shape memory alloy; Polished/oxide; Spool/straight |
| Af temperature |
-15 ℃ ~ 100 ℃ |
| Grade |
NiTi, NiTiCu, NiTiFe, NiTiCr, NiTiNb, etc. |
| Standard |
ASTM F2063-2018 |
| Technology |
Hot/cold drawn |
| Advantage |
Flawless surface, accurate dimension, superior property, the 40% cold process make the wire has excellent supper elasticity. |
| Application |
Dental arch wire, dental root canal file, guide wire, glassed frame, antenna, fishing gear, jewelry, toy and so on. |

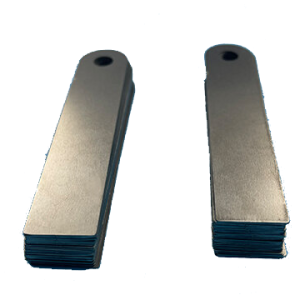

Nitinol Sheets & Plates
| Dimension |
Thickness ≥0.05 mm |
| Category |
Super-elastic/shape memory alloy; Cold rolled surface/pickling/polished |
| Af temperature |
-15 ℃ ~ 100 ℃ |
| Grade |
NiTi, NiTiCu, NiTiFe, NiTiCr, NiTiNb, etc. |
| Standard |
ASTM F2063-2018 |
| Condition |
Annealing/cold-rolled |
| Advantage |
TiNi shape memory alloy has excellent mechanical properties and biocompatibility. |
| Application |
It is widely used in medical, glasses, aerospace, automotive and new industries. |
Nitinol Springs
| Specification |
Customized |
| Category |
One-way shape memory/two-way shape memory |
| Af temperature |
One-way shape memory: 0 ℃ ~ 100 ℃
Two-way shape memory: 15 ℃ ~ 60 ℃ |
| Type |
Round wire spring, flat wire spring |
TiNi Machining Parts
| Specification |
Manufacture according to drawings |
| Popular Products |
Circlips, two-shape memory alloy ring, supper-elastic bracelet, headphone cable and tec. |
| Af temperature |
-15 ℃ ~ 100 ℃ |
