Iron Powder
Iron powder is a kind of important metal powder for powder metallurgy, and it requires a large quantity of Fe powder accounts for 85% of the total metal powder. Iron powder is mainly used in manufacturing machine parts.
Iron-based alloy powder can be used on the working layer of abrasion-resistant anticorrosive parts, such as hydraulic turbine blades, nozzle, wearing ring, and hydraulic rod. The stainless steel powder has a good sphericity configuration with low oxygen content, high hardness, and good toughness.
The iron powder should be stored in a cool, dry, well-ventilated warehouse and kept away from fire and other heat sources. Relative humidity should remain below 75%. The packing must be sealed, do not be affected by dampness. It should be kept apart from alkali, and alcohol, and it should avoid mixed reservoirs by all means. The storage area should be equipped with the right material in case of leakage.
Where to buy iron powder? ARS can supply different kinds of high-purity Iron Metal Powders. If you do not find the sizes or compositions you need, please contact us via email. We have customized sizes and compositions according to customer’s requests.

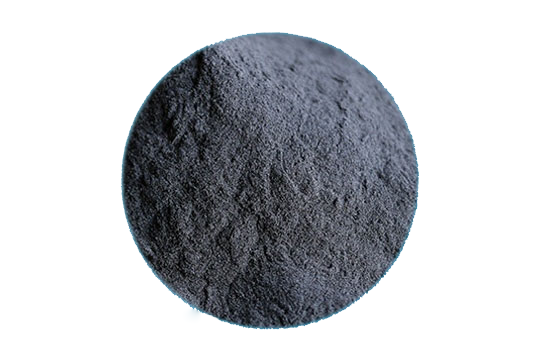

Iron Metal powder
Electrolytic Iron Powder is the purest form of iron powder produced by electrodeposition under controlled conditions. Our Electrolytic Iron Powder is 99.0% pure. Mesh size is offered as per customers’ requirements.
| Grade | Product Name | Chemical Composition | Particle Size | Apparent Density (g/cm3) |
|---|---|---|---|---|
| Fe-1 | Iron powder | Fe: ≥ 99.0% Other: ≤ 1.0% |
-200 mesh Customed sizes available |
– |
| Fe-2 | Iron powder | Fe: ≥ 99.0% Other: ≤ 1.0% |
2- 4 um, D50: 18-27 um Customized sizes avaliable |
0.5-15 |

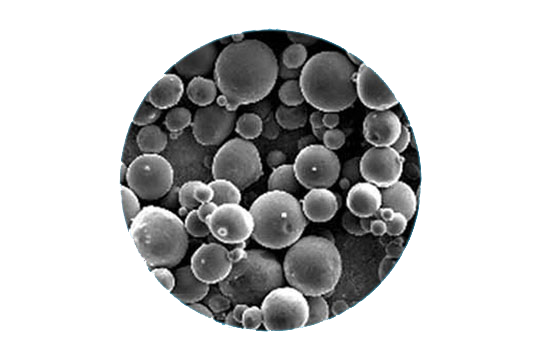

Spherical Iron Based Alloy Powder
Iron powder is a kind of important metal powder for powder metallurgy, and it requires a large quantity of Fe powder accounts for 85% of the total metal powder. Iron powder is mainly used in manufacturing machine parts.
Iron-based alloy powder can be used on the working layer of abrasion-resistant anticorrosive parts, such as hydraulic turbine blade, nozzle, wearing ring, hydraulic rod. The stainless steel powder has a good sphericity configuration with low oxygen content, high hardness, and good toughness.
ARS can supply different kinds of Iron-Based Alloy Powder in high purity. If you can’t find the sizes or compositions you need, please contact us by email. We have customized sizes and compositions according to customer’s requests.
Grade:
Stainless steel powder: 304, 316L, 410L, 15-5PH, 17-4PH, 2Cr13
High-strength steel powder: A100, 300M, 30CrMnSiA, 40CrMnSiMoVA
Tool steel powder: 18Ni300, H13, M2, M35, M42, T15, 2030, S390
Iron-nickel alloy powder: Invar 36
Standard: GB/T 3077, GB/T 1299, GB/T 1480, GB/T 5329, GB/T 8180
Particle size: 0-20μm, 15-45μm, 15-53μm, 53-105μm, 53-150μm, 105-250μm

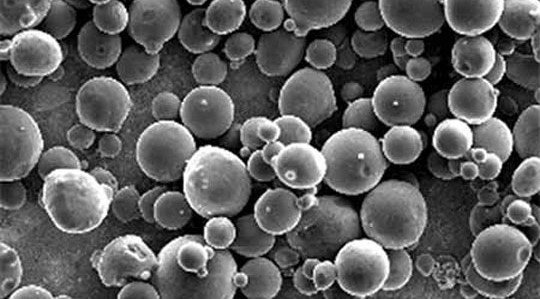

Shape: Spherical, Ψ0≥0.85
Appearance: Gray
3D Printing Application: SLM, LMD
Other Application: PM, MIN, HIP, SP, welding repair
Package: Vacuum packaging (Aluminum foil bag) or argon-filled protective packaging (Aluminum bottle)
Chemical Composition of Iron Based Alloy Powder
| Grade | Chemical Composition (wt.%) | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | Cr | Ni | Mn | Mo | Si | Nb | Cu | Co | Ti | Al | V | P | O | N | S | Fe | |
| 304 | ≤0.07 | 17-19 | 8-10 | ≤2 | ≤1 | ≤0.035 | ≤0.03 | Bal. | |||||||||
| 304L | ≤0.03 | 18-20 | 8-10 | ≤2 | ≤1 | ≤0.035 | ≤0.03 | Bal. | |||||||||
| 316 | ≤0.08 | 16-18.50 | 10-14 | ≤2 | 2-3 | ≤1 | ≤0.035 | ≤0.03 | Bal. | ||||||||
| 316L | ≤0.03 | 16-18 | 12-15 | ≤2 | 2-3 | ≤1 | ≤0.035 | ≤0.03 | Bal. | ||||||||
| 410 | ≤0.15 | 11.5-13.5 | ≤1 | ≤1 | ≤0.035 | ≤0.03 | Bal. | ||||||||||
| 420 | 1.06-0.25 | 12-14 | ≤1 | ≤1 | ≤0.035 | ≤0.03 | Bal. | ||||||||||
| 430 | ≤0.12 | 16-18 | ≤0.6 | ≤1 | ≤0.75 | ≤0.04 | ≤0.04 | Bal. | |||||||||
| 630 | ≤0.07 | 15.5-17.5 | 6.5-7.5 | ≤1 | ≤1 | 0.15-0.45 | 3-5 | ≤0.035 | ≤0.03 | Bal. | |||||||
| 17-4PH | ≤0.07 | 15.5-17.5 | 3-5 | ≤1 | ≤1 | 0.15-0.45 | 3-5 | ≤0.035 | ≤0.03 | Bal. | |||||||
| 15-5PH | ≤0.07 | 14-15.5 | ≤1 | ≤1 | 0.15-0.45 | 2.5-4.5 | ≤0.04 | ≤0.05 | 3.5-5.5 | ≤0.03 | Bal. | ||||||
| 2Cr13 | 0.16-0.25 | 12-14 | ≤1 | ≤1 | ≤0.035 | ≤0.05 | ≤0.6 | ≤0.03 | Bal. | ||||||||
| SCM415 | 0.13-0.18 | 0.9-1.2 | 0.6-0.85 | 0.15-0.3 | 0.15-0.35 | ≤0.04 | ≤0.03 | Bal. | |||||||||
| S301 | ≤0.15 | 16-18 | 6-8 | ≤2 | ≤1 | ≤0.045 | ≤0.05 | ≤0.1 | ≤0.03 | Bal. | |||||||
| S310 | ≤0.08 | 24-26 | 19-22 | ≤2 | ≤1.5 | ≤0.045 | ≤0.05 | ≤0.03 | Bal. | ||||||||
| S220 | ≤0.03 | 22-23 | 4.5-6.5 | ≤2 | 3-3.5 | ≤1 | ≤0.03 | ≤0.05 | 0.14-0.2 | ≤0.02 | Bal. | ||||||
| 18Ni300 | ≤0.03 | ≤0.3 | 17-19 | ≤0.1 | 4.5-5.2 | ≤0.1 | 8.5-9.5 | 0.6-0.8 | 0.05-0.15 | ≤0.01 | ≤0.05 | ≤0.01 | Bal. | ||||
| H13 | 0.32-0.45 | 4.75-5.5 | 0.2-0.5 | 1.1-1.75 | 0.8-1.2 | 0.8-1.2 | ≤0.03 | ≤0.05 | ≤0.03 | Bal. | |||||||
| 1.2709 | ≤0.03 | ≤0.25 | 17-19 | ≤0.15 | 4.5-5.2 | ≤0.41 | 8.5-10 | 0.8-1.2 | ≤0.01 | ≤0.05 | ≤0.01 | Bal. | |||||
Self-fusing Iron Base Alloy Powder
Self-fusing Iron base alloys are Iron-Carbon alloys with additions of Chromium, Boron, and Silicon. These are typically used on mechanical parts for resisting wear and weak acid corrosion. Even though their properties are not as good as Nickel, Cobalt base alloys, they are readily available and inexpensive, making them popular.
Products Series
| Grade | Hardness (HRC) | Chemical Composition | Particle (mesh) | Application | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | Cr | Si | Fe | Mo | Ni | Mn | B | Other | ||||||
| Fe1 | 35-40 | 0.15 | 22 | 4.5 | Bal. | 2 | 13 | 1.6 | 100/270 | Valve | ||||
| Fe2 | 38-44 | 0.15 | 22 | 4.5 | Bal. | 2 | 10 | 1.8 | 100/270 | Valve seat | ||||
| Fe5 | 62-67 | 4.5 | 40 | 1 | Bal. | 0.97 | 1.8 | 100/270 | Drilling pipe joint | |||||
| Fe90 | 50-55 | 0.15 | 13.5 | 1.3 | Bal. | 1.6 | 100/270 | Drilling pipe joint | ||||||
| Fe6 | 58-60 | 0.8 | 7.5 | 2 | Bal. | 32 | 4 | 100/270 | Fan blades | |||||
| Fe45 | 40-46 | 0.6 | 7.5 | 2 | Bal. | 22 | 3 | 100/270 | Paper-making machines | |||||
| Fe304 | HB190 | 0.03 | 18 | 0.1 | Bal. | 10 | 0.3 | 100/270 | Paper-making machines | |||||
| Fe316L | HB190 | 0.03 | 17 | 0.2 | Bal. | 2.5 | 12 | 0.5 | 100/270、300/500 | Paper-making machines | ||||
| Fe410L | HB220 | 0.03 | 12.5 | 0.5 | Bal. | 0.1 | 100/270、 300/500 | Pistons | ||||||
| JG-1 | 19 | 0.03 | 17 | 0.8 | Bal. | 0.3 | 1.3 | Pistons | ||||||
| JG-2 | 26 | 0.04 | 17 | 0.3 | Bal. | 0.2 | 2.6 | Pistons | ||||||
| JG-3 | 46 | 0.12 | 16.5 | 0.8 | Bal. | 0.9 | Pistons | |||||||
| JG-4 | 63 | 1 | 4 | 0.3 | Bal. | 5 | 0.3 | Pistons | ||||||
| Fe253 | 35 | 1.75 | 28 | 1.3 | Bal. | 4.5 | 16 | 0.8 | 100/270 | Engine valve | ||||
| Fe253H | 40 | 2.1 | 28 | 1.2 | Bal. | 5.5 | 11.5 | 1 | 100/270 | Engine valve | ||||
| Fe101 | 62 | 3.3 | 2 | 1 | Bal. | 5 | 1 | 1.4 | 20/300 | Extrusion barrels | ||||
| Fe102 | 62 | 2.7 | 2.8 | 1 | Bal. | 5.5 | 1 | 1.9 | 20/300 | Extrusion barrels | ||||
| Fe103 | 62 | 1.5 | 4.5 | 1 | Bal. | 7 | 1 | 2.9 | W:4.5 | 20/300 | Extrusion barrels | |||
| Fe104 | 60 | 1.7 | 4.5 | 1.5 | Bal. | 11 | 0.8 | 3 | 20/300 | Extrusion barrels | ||||
| Fe105 | 62 | 1.5 | 4.5 | 1.3 | Bal. | 1.5 | 12 | 1 | 2.8 | 20/300 | Extrusion barrels | |||
| Fe106 | 62 | 1.08 | 5.42 | 2.01 | Bal. | 27 | 0.89 | 3.08 | 20/300 | Extrusion barrels | ||||
| Fe107 | 62 | 1.36 | 6.25 | 1.56 | Bal. | 16.2 | 1.02 | 2.98 | 20/300 | Extrusion barrels | ||||
