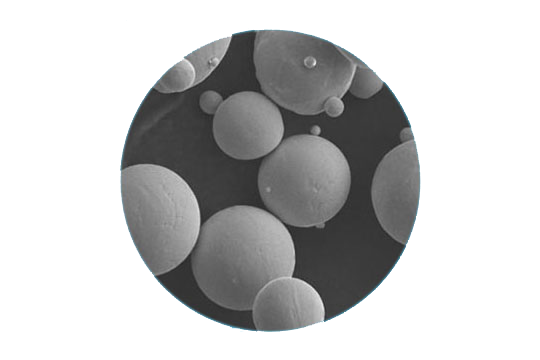

Spherical Titanium Powder and Titanium Alloy Powder
The Titanium powder and titanium-based alloy powder are high purity and good density. These are essential powder materials for metal 3D printing (laser/electron beam selective melting), aerospace key components, and biomedical titanium alloy implants (surface treatment).
We can provide kinds of titanium alloy powders with customized sizes. If you can’t find what you are looking for, please feel free to contact us via email.
Grade: TA0/Ti/Cp，TA1/Gr.1，TC4/Ti64/Gr.5，TC4 ELI，TC11/BT9，TC17，TC18，TC21，TA7，TA12，TA15/BT20，TA17，TA19/Ti6242，Ti40，Ti60，TiAl（Ti36Al,Ti48Al2Cr2Nb/Ti4822），TiNi，TiNb，ZrTi
Standard: GB/T 3620.1, GB/T 3620.2, GB/T 4698, ASTM F2924, ASTM F3001, ASTM F3187, AMS 4998, AMS 4999, GB/T 1480, GB/T 5329, GB/T 8180
Particle Size: 0-20μm, 15-45μm, 15-53μm, 53-105μm, 53-150μm, 105-250μm

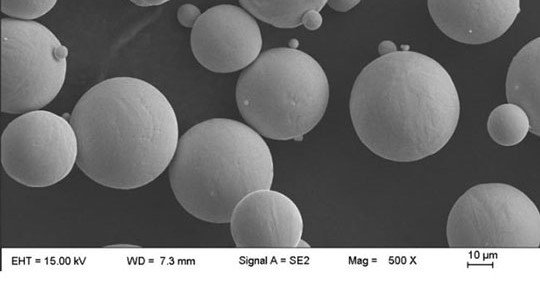

Shape: Spherical, Ψ0≥0.90
Appearance: Gray
3D Printing Application: SLM, EBM, LMD
Other Application: PM, MIN, HIP, SP, Welding repair
Package: Vacuum packaging (aluminum foil bag) or argon-filled protective packaging (Aluminum bottle)
Properties of Pure Titanium Powders
| Particle Size Range (um) |
Laser Particle Size Distribution (um) | Apparent Density (g/cm3) |
Carney Flow (s/50g) |
Hall Flow (s/50g) |
Oxygen Content (ppm) |
Nitrogen Content (ppm) |
||
|---|---|---|---|---|---|---|---|---|
| D10 | D50 | D90 | ||||||
| 0-15 | 6 | 15 | 21 | 2.1 | / | / | 800-1100 | ≤100 |
| 15-53 | 18 | 35 | 49 | 2.3 | ≤6 | ≤36 | ||
| 53-105 | 64 | 73 | 108 | 2.5 | ≤5 | ≤35 | ||
Mechanical Properties of Titanium Alloy Powder
| Grade | Mechanical Properties | ||
|---|---|---|---|
| σb（MPa） | σ0.2（MPa） | δ（%） | |
| TC4/Ti64/Gr.5 | 1040-1130 | 950-1010 | 8-18 |
| 950-1130 | 830-1080 | 9-12 | |
| ≥895 | ≥825 | ≥8-10 | |
| TC11/BT9 | 1080-1150 | 910-1030 | 6-15 |
| ≥1030 | ≥910 | ≥8 | |
| TA15/BT20 | 950-1200 | 855-970 | 8-14 |
| ≥930 | ≥855 | ≥8~10 | |
Chemical Composition Of Titanium Alloy Powder
| Grade | Chemical Composition (wt.%) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ti | Fe | Al | V | C | N | H | O | Si | Zr | Mo | Cr | |
| Commerciallly Pure Titanium | Bal. | ≤0.10 | ≤0.08 | ≤0.03 | ≤0.015 | ≤0.15 | ≤0.08 | |||||
| Ti6Al4V | Bal. | ≤0.30 | 5.50-6.75 | 3.50-4.50 | ≤0.08 | ≤0.03 | ≤0.015 | ≤0.12 | ||||
| TA15/BT20 | Bal. | ≤0.25 | 5.50-7.10 | 0.80-2.5 | ≤0.08 | ≤0.05 | ≤0.015 | ≤0.15 | ≤0.15 | 1.5-2.5 | 0.50-2.0 | |
| TC11/BT9 | Bal. | ≤0.25 | 5.80-7.00 | ≤0.08 | ≤0.05 | ≤0.01 | ≤0.15 | 0.20-0.35 | 0.80-2.00 | 2.80-3.80 | ||
| TC18 | Bal. | 0.5-1.5 | 4.4-5.7 | 4.0-5.5 | ≤0.08 | ≤0.05 | ≤0.015 | ≤0.18 | ≤0.15 | ≤0.30 | 4.0-5.5.5 | 0.5-1.5 |
Properties of TC4 Powders
| Particle Size Range (um) |
Laser Particle Size Distribution (um) | Apparent Density (g/cm3) |
Carney Flow (s/50g) |
Hall Flow (s/50g) |
Oxygen Content (ppm) |
Nitrogen Content (ppm) |
||
|---|---|---|---|---|---|---|---|---|
| D10 | D50 | D90 | ||||||
| 0-15 | 7 | 13 | 21 | 2.1 | / | / | 800-1600 | ≤300 |
| 15-53 | 20 | 33 | 49 | 2.4 | ≤6 | ≤35 | ||
| 53-105 | 65 | 75 | 119 | 2.5 | ≤5 | ≤25 | ||
| 105-150 | 108 | 131 | 158 | 2.4 | ≤5 | ≤25 | ||
Custom Products – Properties of Ti2AlNb Powders
| Particle Size Range (um) |
Laser Particle Size Distribution (um) | Apparent Density (g/cm3) |
Carney Flow (s/50g) |
Hall Flow (s/50g) |
Oxygen Content (ppm) |
Nitrogen Content (ppm) |
||
|---|---|---|---|---|---|---|---|---|
| D10 | D50 | D90 | ||||||
| 15-53 | 20 | 36 | 50 | 2.5 | ≤6 | ≤60 | 800-1300 | ≤200 |
| 53-105 | 68 | 75 | 110 | 2.9 | ≤5 | ≤50 | ||
