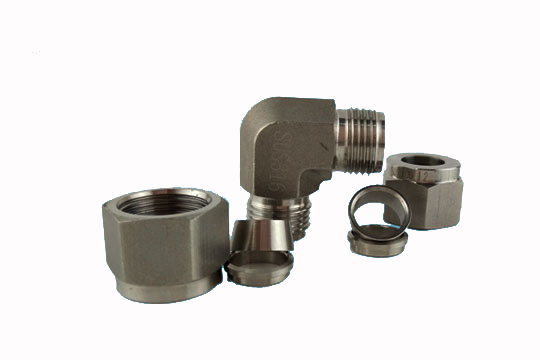

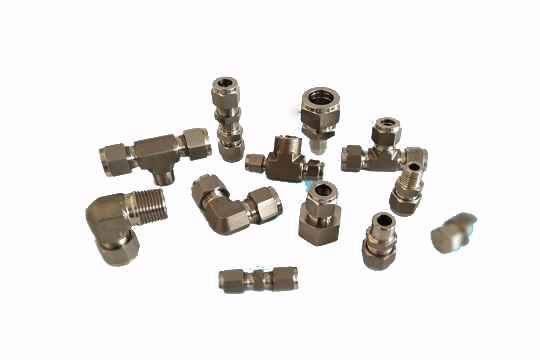

Titanium Fittings
ARS provides kinds of titanium fittings with different sizes, lengths, forms, and types. These titanium fittings are known for their perfect features like a specific design, corrosion & abrasion resistance, and durable finishes.
Titanium Fittings Specifications
| Dimension Standard | ASME B16.9, ASTM B363, DIN 17861 |
|---|---|
| Dimension Range | DN15—DN800 |
| Quality Control | X-ray test, and dye penetrant test |
| Processing Technique | Cold-rolled, weld, weld-cold-rolled, fasten and press, butt-weld or forged |
| Surface Status | Painted, sandblasting |
| Advantage | Completed mold, methods test one by one |
| Other | Special designs are available |
Titanium Fittings Applications
Titanium fittings serve as connectors for tubes, and pipes, mainly applied to electron, chemical industry, mechanical equipment, galvanizing apparatus, environmental protection, medical, precision processing industry, etc.
Chemical Composition of Titanium Fittings (Nominal %)
| N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Gr. 1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | bal |
| Gr. 2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | bal |
| Gr. 3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | bal |
| Gr. 4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | |
| Gr. 5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr. 7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr. 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr.12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |

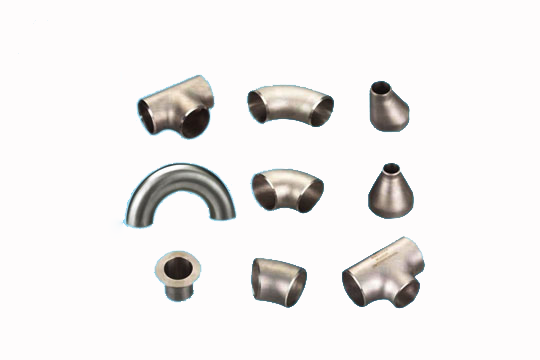

Titanium Fittings List
45° titanium elbows
90° titanium elbows
180° titanium returns
Titanium equal tees (titanium straight tees)
Titanium reducing tees
Titanium concentric reducers
Titanium eccentric reducers
Titanium lap joint stub ends
Titanium reducers
Titanium couplings
Titanium bushings
Titanium caps
Titanium pipe nipples
Titanium pipe plugs
Titanium Fittings Remarks
Other materials and drawings are available.
Advantages of Titanium Fittings from ARS
Comparative high quality while retaining the same price
Timely delivery as your requirements
Professional service to cut purchasing costs down
No minimum order requirement for these parts.
Please contact us and we will be happy to quote you a custom size.
