Titanium Wire
We stock a wide range of titanium wire, including a complete line of commercially pure titanium wire and medical titanium wire. It can be supplied in random lengths.
Titanium Wire Specifications
| Standard | ASTM B863, ASTM B348, ASTM F67, ASTM F136, etc. | |||||
| Grade | Gr1, Gr2, Gr3, Gr5, Gr23, etc. | |||||
| Technique | Hot rolled, cold rolling, annealing | |||||
| Straight | Diameter: 1.0mm-5.0mm ( tolerance: +/-0.05mm ) | |||||

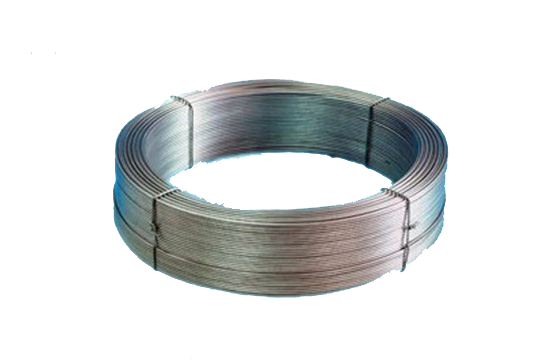

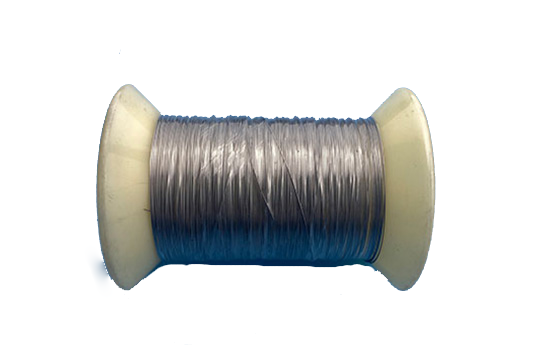

| Coiled | Diameter: 0.01mm-5.0mm | |||||
| Length | Coils or as per customers’ requests | |||||
| Surface | Black, pickled, polished ( for diameter >1mm ) | |||||
Titanium Wire Feature
Low density and high specification strength
Excellent corrosion resistance
Good resistance to the effect of heat
Excellent bearing to cryogenic property
Non-magnetic and non-toxic
Good thermal properties
Low modulus of elasticity
Titanium Wire Applications
3D printing and powdering wire
3D printing direct wire
Aerospace alloys and applications
Medical implants
Automotive applications
Piercing & accessory
Optical frames
Surgical instruments
Architectural applications
Cladding to other materials
Bolts & nuts
Netting in corrosion
Titanium Wire Testing
Room temperature tensile
Bend testing
Metallography (General)
Micro-hardness
Near-surface examinations
Hardness testing
Meet specifications AMS, ASTM, MIL, DIN
Tensile Requirements of Titanium Wire
| Grade | Tensil Strength (min) | Yeild Strength (min) | Elongation (%) | ||
| KSI | MPa | KSI | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 3 | 65 | 450 | 55 | 380 | 18 |
| 4 | 80 | 550 | 70 | 483 | 15 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |
Titanium round wire, titanium resistance wire, nickel titanium wire, titanium ear wire, titanium weld wire, nitinol wire all are available. We produce according to given precise dimensions. We are a trusted supplier and has been specialized in Titanium Wire production for many years. We supply high-quality medical Titanium Wire at competitive prices.

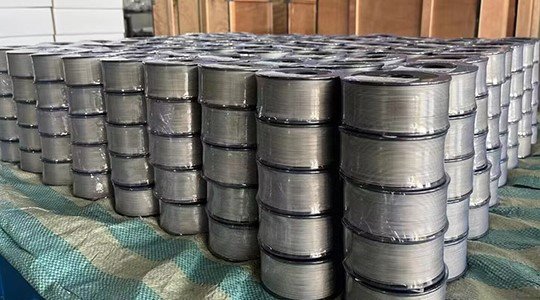

Titanium Wire Package
Wooden case or according to your requirements.
