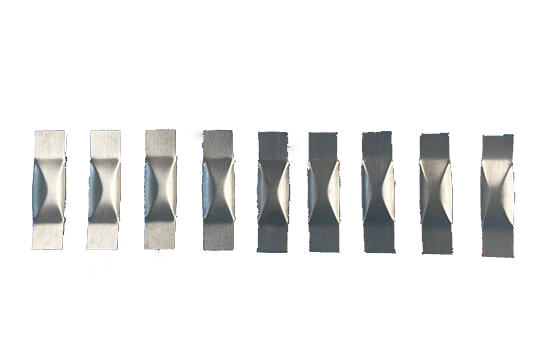

Tungsten boat is made of Tungsten sheet through a process of cutting, bending, welding, and riveting. We can manufacture customized tungsten boats according to customers’ requirements. can provide bending, folding, riveting, pressing, and welding tungsten boats according to our customer’s needs. Our special production line manufactures tungsten boats and elaborately made from tungsten plates or sheets with high-quality. Our tungsten boat has high purity, high-density, varied types, stable performance, and longer service life, for helping you save cost.
Shapes of Evaporation Boats
-
Trough Boats
-
Dimple Boats
-
Notched Boats
-
Canoe Boats
-
Holed/ Covered Boats
-
Slab/ Flat/ Dish Boats
-
Well Boats
-
Tube Heater/ Crucible Heater Boats
-
Elongated Dimple Boats
Dimensions of Evaporation Boats
| Type | Length (mm) |
Width (mm) |
Length or Diameter of the Recess (mm) |
Depth of the Recess (mm) |
Thickness (mm) |
Volume (cc) |
| EB-1 | 100 mm | 20 mm | 37 mm | 3.2 mm | 0.1 mm, 0.2 mm , 0.3 mm | 0.62 cc |
| EB-2 | 100 mm | 13 mm | 10 mm | 2.0 mm | 0.1 mm, 0.2 mm , 0.3 mm | 0.07 cc |
| EB-3 | 100 mm | 17 mm | 15 mm | 2.9 mm | 0.1 mm, 0.2 mm , 0.3 mm | 0.23 cc |
| EB-4 | 102 mm | 15 mm | 40 mm | 2.5 mm | 0.1 mm, 0.2 mm , 0.3 mm | 0.83 cc |
| EB-5 | 100 mm | 16 mm | 50 mm | 3.8 mm | 0.1 mm, 0.2 mm , 0.3 mm | 2.04 cc |
| EB-6 | 100 mm | 13 mm | 18 mm | 2.0 mm | 0.1 mm, 0.2 mm , 0.3 mm | 11.2 cc |
| EB-7 | 90 mm | 14 mm | 10 mm | 2.0 mm | 0.1 mm, 0.2 mm , 0.3 mm | 0.07 cc |
| EB-8 | 100 mm | 15 mm | 40 mm | 2.3 mm | 0.1 mm, 0.2 mm , 0.3 mm | 0.74 cc |
| EB-9 | 100 mm | 16 mm | 34 mm | 2.9 mm | 0.1 mm, 0.2 mm , 0.3 mm | 0.61 cc |
| EB-10 | 100 mm | 17 mm | 15 mm | 2.5 mm | 0.1 mm, 0.2 mm , 0.3 mm | 0.2 cc |
| EB-11 | 100 mm | 17 mm | 40 mm | 10 mm | 0.1 mm, 0.2 mm , 0.3 mm | 5.79 cc |
| EB-12 | 100 mm | 10 mm | 44 mm | 2.7 mm | 0.1 mm, 0.2 mm , 0.3 mm | 0.44 cc |
| The customized size can be porvided accroding to customer’s drawings. | ||||||
Drawings of Evaporation Boats
 |
 |
 |
 |
| EB-1 | EB-2 | EB-3 | EB-4 |
 |
 |
 |
 |
| EB-5 | EB-6 | EB-7 | EB-8 |
 |
 |
 |
 |
| EB-9 | EB-10 | EB-11 | EB-12 |
Tungsten Boat Properties
Purity: >99.95%
Density: >19.1g/cc
W content: ≥99.95%
Technique: Extruding, forging, rolling, machining, and sintering
Tungsten Boat Application
Tungsten boat is widely used in military industry, electronic industry, and light industry. Besides, it can also be applied in metalizing, electron beam spraying, and the vacuum coating industry.
Tungsten Boat Specification
Length: 50mm-1000mm
Width: 10mm-500mm
Height: 10mm-300mm
Wall thickness: 0.3mm-10mm
