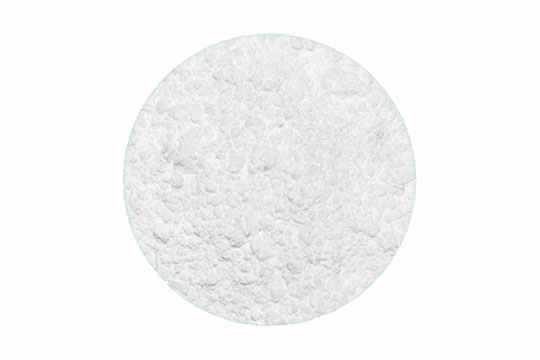

Tantalum Oxide Powder

Tantalum pentoxide, also known as tantalum (V) oxide, is the inorganic compound with the formula Ta2O5. It is a white solid that is insoluble in all solvents but is attacked by strong bases and hydrofluoric acid. Ta2O5 is an inert material with a high refractive index, and low absorption (i.e. colorless), making it useful for coatings. It is also extensively used to produce capacitors due to its high dielectric constant.

Owing to its high band-gap and dielectric constant, tantalum pentoxide has found various uses in electronics, particularly in tantalum capacitors. These are used in automotive electronics, cell phones, pagers, electronic circuitry, thin-film components, and high-speed tools. In the 1990s, interest grew in tantalum oxide as a high-k dielectric for DRAM capacitor applications. It is used in on-chip metal-insulator-metal capacitors for high-frequency CMOS integrated circuits.

Due to its high refractive index, Ta2O5 has been utilized to produce the glass of photographic lenses.[/vc_column_text][vc_empty_space][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]

Evaporation Parameters:

Evaporation Temperature	~2000° C
Source Container	Tantalum or graphite liner for E-beam
Rate	2-5 Å/sec.
Partial Pressure of Oxygen	~1 x 10-4 Torr
Substrate Temperature	175° C to300° C.
Z-Ratio	0.3

[/vc_column_text][vc_empty_space height=”64px”][vc_empty_space][/vc_column][/vc_row][vc_row][vc_column][vc_empty_space][vc_empty_space][vc_column_text css=””]

Physical Properties of Solid Material:

Molecular Weight	441.89 g/mol
Melting Point	1872° C
Color	White or black
Crystal Density	8.2g/cc

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_empty_space][vc_empty_space][vc_column_text css=””]

Compositions of Tantalum Oxide Powder

Grade		Ta2O5-1	Ta2O5-2	Ta2O5-3
Ta2O5 (metal basis)		>99.9%	＞99.99%	＞99.999%
F.S.S.S		0.5~2um	1~3um	1~3um
Impurities	Nb	<0.005%	<10ppm	<2ppm
	Fe	<0.005%	<10ppm	<3ppm
	Si	<0.002%	<10ppm	<3ppm
	Ti	<0.002%	<3ppm	<1ppm
	Ni	<0.002%	<3ppm	<1ppm
	W	<0.003%	<5ppm	<2ppm
